*Rugged sealed construction;

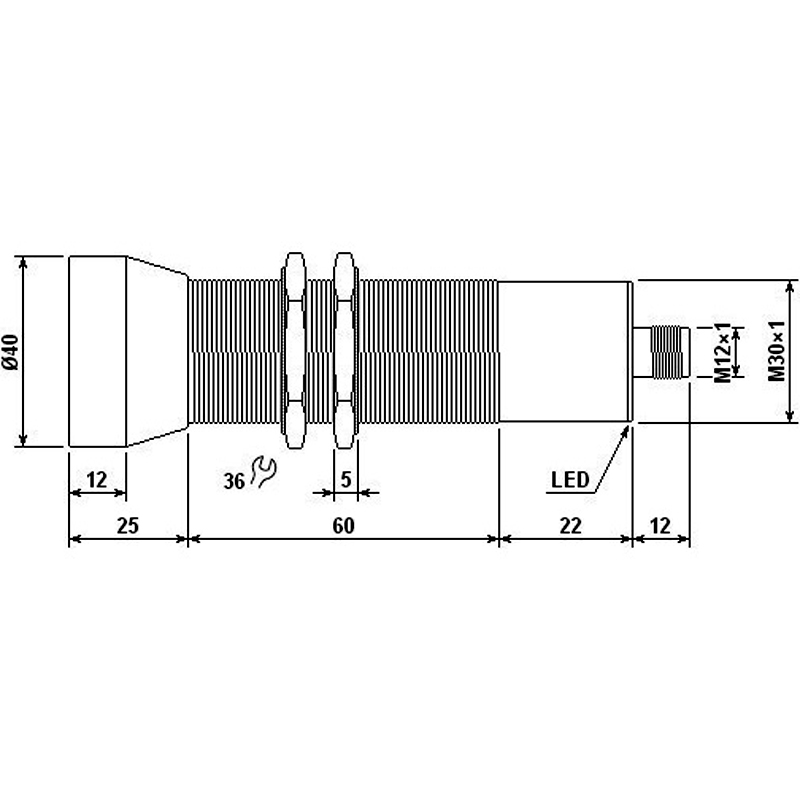

*Cylindrical design, easy for installation;
*Short-range measurement capabilities
Application:
People detection;
Monitoring foil;
Monitoring of trays;
Presence detection;
Loop control;
Checking diameter;
Stacking height control;
Ultrasonic barrier;
Interval control;
Installation for a foil extruder.
Technical parameter:
Detectable range: 4m (custom made available)
Blind Area: 20~35cm
Accuracy: 1mm
Directivity: 7°
Center Frequency: 85KHz
Working voltage: 12/24V (custom made available)
Output Method: Analog (0~5v~10v), digital: RS485 & 232, switching: npn, pnp.
Protection Class: IP67
Housing material: ABS/copper with nickel plating(custom made available)
Operating temperature: -20°C~+60°C
Storage temperature: -40°C~+70°C
For more details, please contact us.
