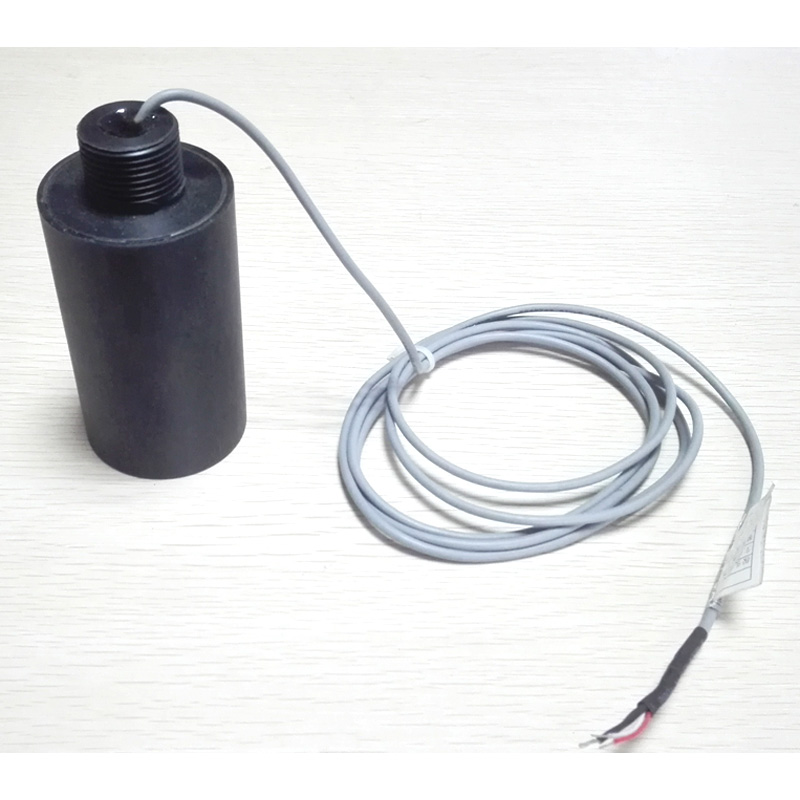

12KHz Φ120mm underwater 360 degree horizontal direction transducer
12KHz Φ120mm underwater 360 degree horizontal direction transducer 12KHz Φ120mm underwater 360 degree horizontal direction transducer

12KHz Φ120mm underwater 360 degree horizontal direction transducer

Product ID : LSPU12012FPIH170D
Product Description

Applications:

underwater information transmission, underwater sound sourcing, under water range detection, level measurement etc



Technical parameter:

Center Frequency: 12KHz ±  5%

Detectable range: 1000 m

Mini. parallel Resistance: 60 Ω ± 20%

Capacitance: 22000pF ± 20% @1KHz

Working temperature: -40 ~ +80℃

Pressure: ≤ 10Kg or 1MPa

Angle: horizontal omnidirection

Housing Material: POM

Protection class: IP68



For more details, please contact us.
