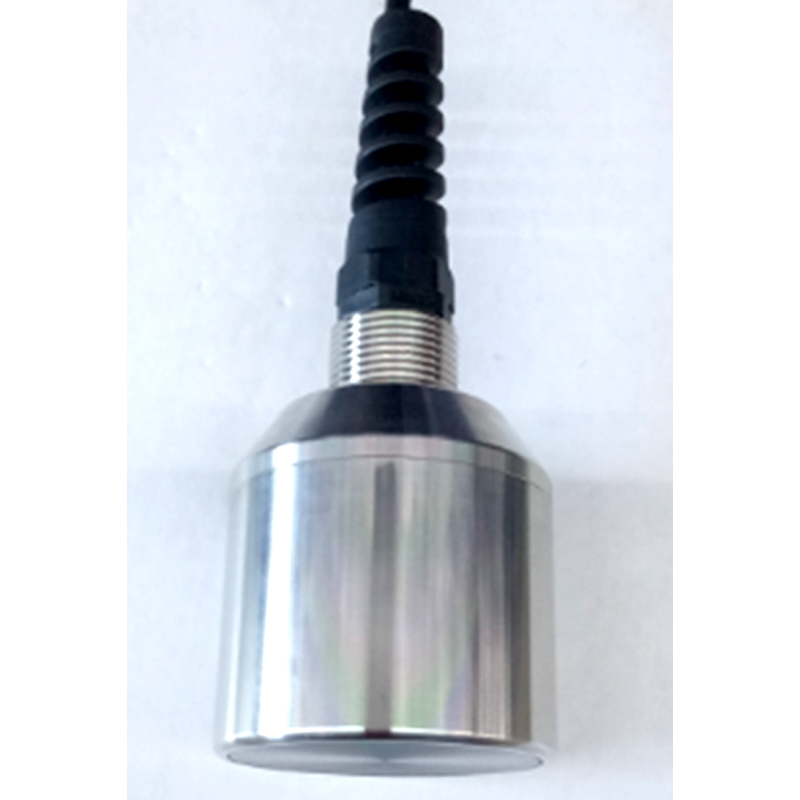

*Rugged sealed construction;

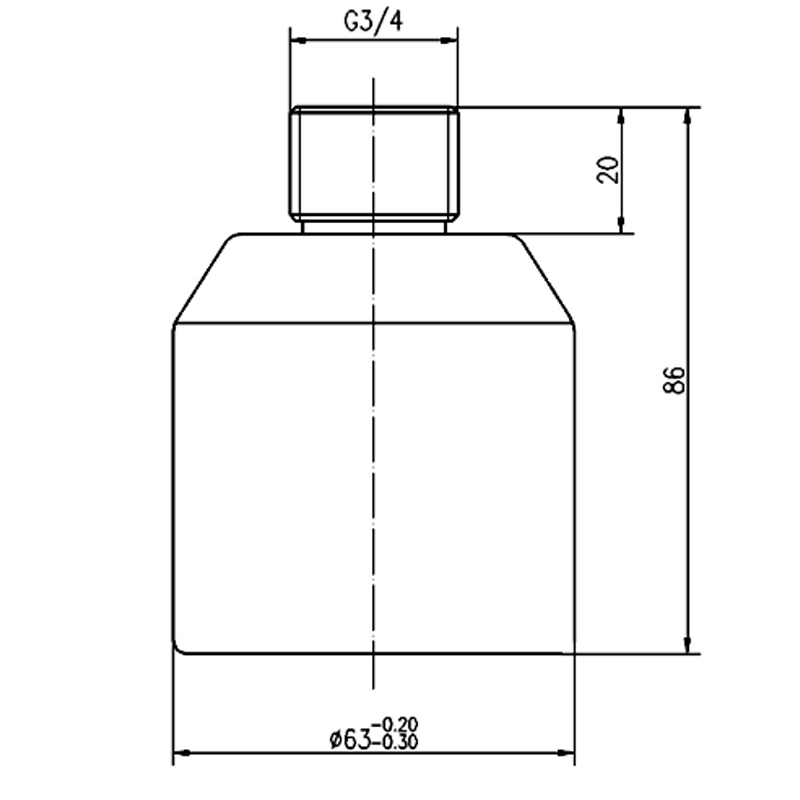

*Cylindrical design, easy for installation;
*Long-range measurement capabilities
Applications:
Silt level measurement, under water range detection, level measurement etc
Technical parameter:

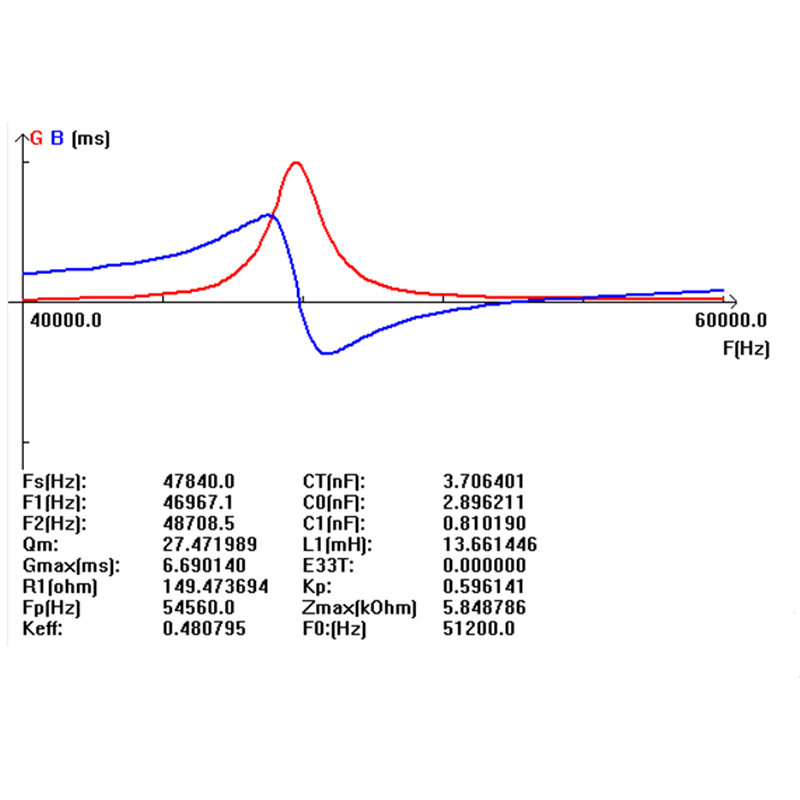

Center Frequency: 200KHz ± 5%/50KHz ± 5%
Ranging: 200KHz: 0.6~200m / 50KHz: 3~500m
Mini. parallel Resistance: 50KHz: 180 Ω ± 20%
Capacitance: 50KHz: 4000pF ± 20% @1KHz
Echo Sensitivity: 1.5V echo amplitude @0.8m, under 500Vpp
Crest voltage: less than 1500Vpp
Working temperature: -40 ~ +80℃
Pressure: ≤10Kg or 1MPa
Angle: (beam width) Half-power angle@-3dB: 7.5°±10%, Sharp Angle: 17.5°±10% (200KHz);
(beam width) Half-power angle@-3dB: 27°±10%, Sharp Angle: 68°±10% (50KHz);
Housing Material: stainless steel plus ABS
Protection class: IP68
Gross weight: 1200g ± 5%
For more details, please contact us.
