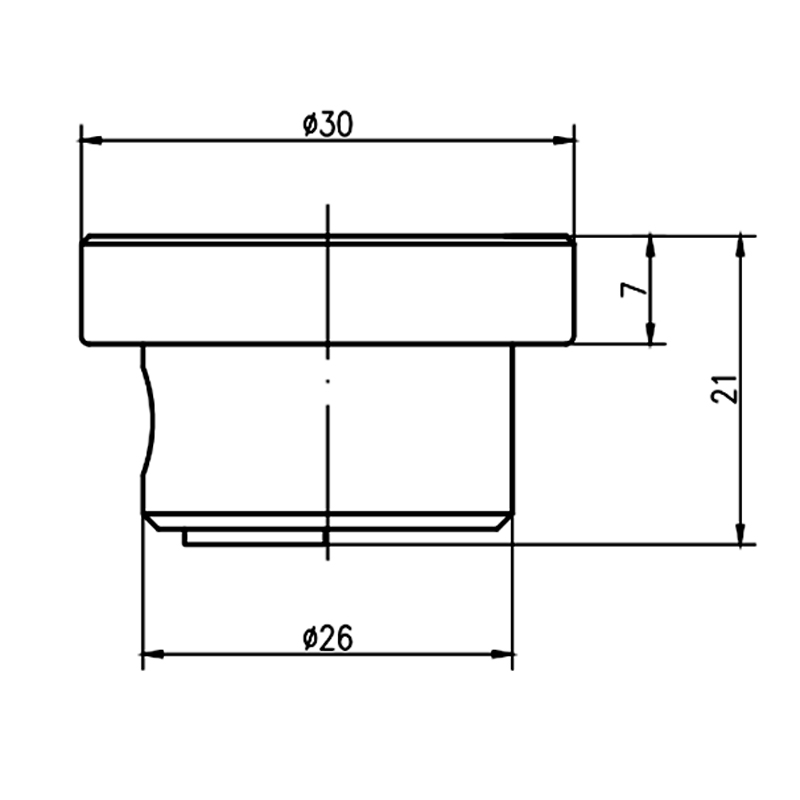

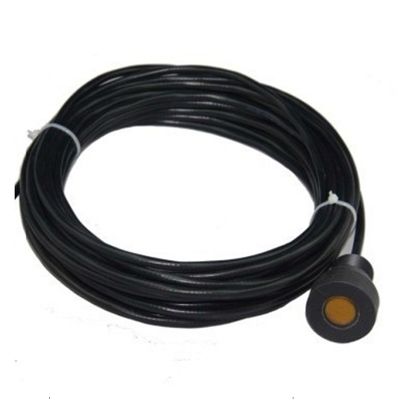

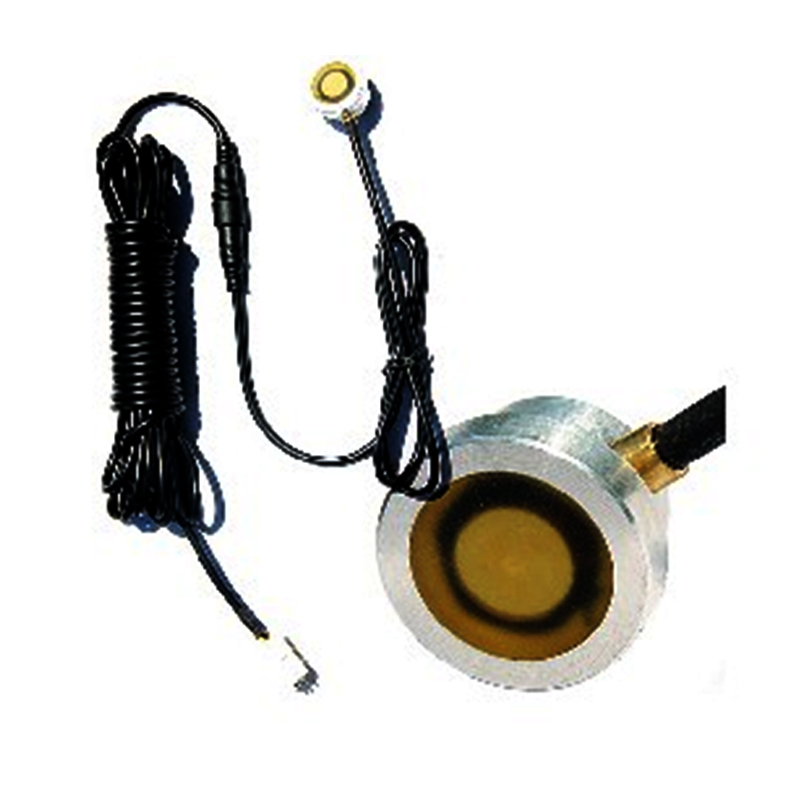

2MHz Φ30mm underwater transducer for tank fuel level sensors
2MHz Φ30mm underwater transducer for tank fuel level sensors 2MHz Φ30mm underwater transducer for tank fuel level sensors 2MHz Φ30mm underwater transducer for tank fuel level sensors

2MHz Φ30mm underwater transducer for tank fuel level sensors

Product ID : LSPU302MFAIH21D
Product Attributes :

*Rugged sealed construction;

*Cylindrical design, easy for installation;

*Short-range measurement capabilities.

Product Description

Application:

Ultrasonic fuel sensor is geared to all kinds of vehicles, such as logistics cars, taxis, buses, commuter trains, etc.



Technical parameter:

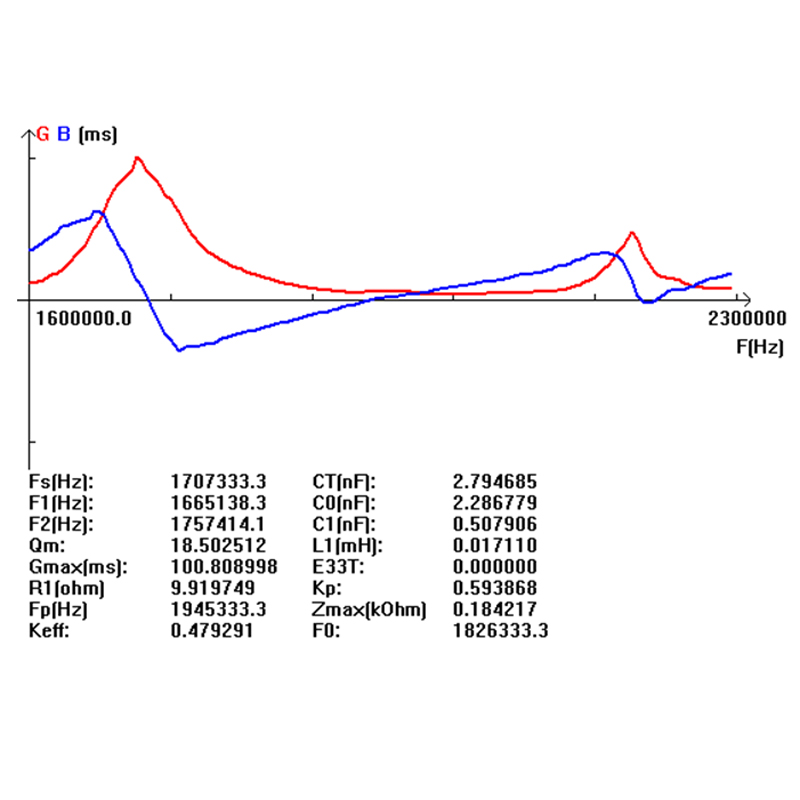

Center Frequency: 2MHz ± 5%

Detectable range: 0.03~2m

Mini. parallel Resistance: 10 Ω ± 20%

Capacitance: 2300pF ± 20% @1KHz

Echo Sensitivity: 900mV echo amplitude @0.3m, under 24Vpp

Working Voltage: Crest voltage less than 150Vpp

Working temperature: -40 ~ +80℃

Pressure: ≤10Kg or 1MPa

Angle: Half-power angle @-3dB: 2.4° ± 10%, Sharp Angle: 5.7° ± 10%

Housing Material: 2A12

Protection class: IP68

Gross weight: 240g ± 5%



For more details, please contact us.
