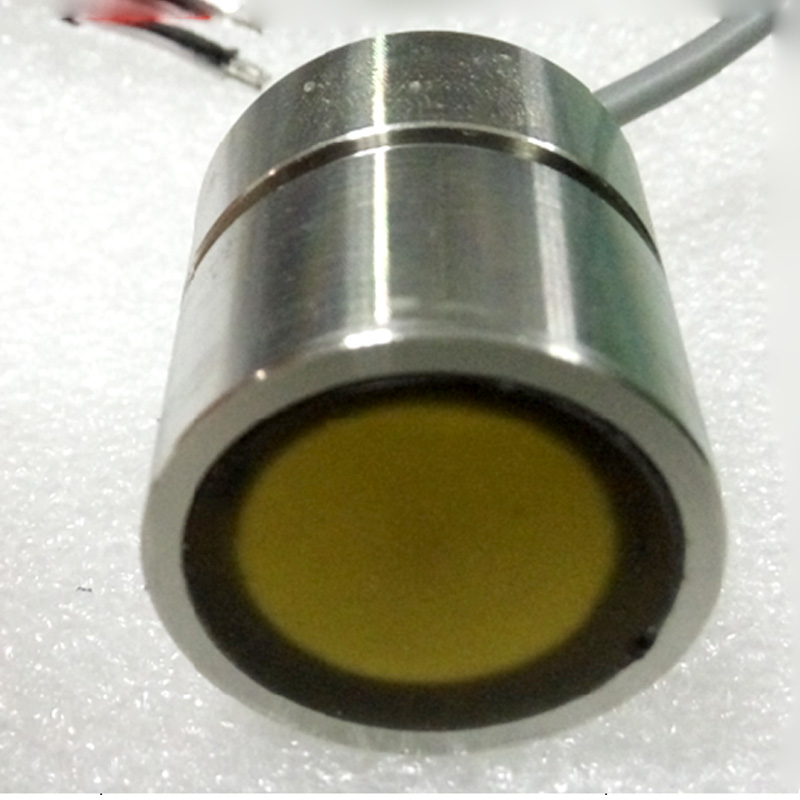

*Rugged sealed construction;

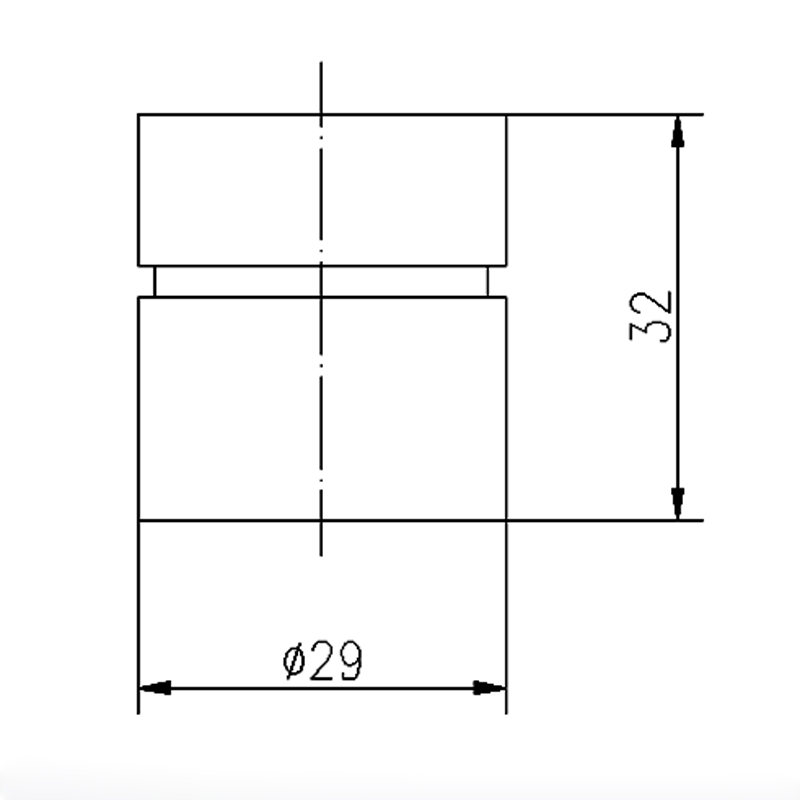

*Cylindrical design, easy for installation;
*Short-range measurement capabilities
Application:
Ultrasonic level gauge, monitoring, anti-collision, security
Technical parameter:
Construction: waterproof
Using Method: dual use

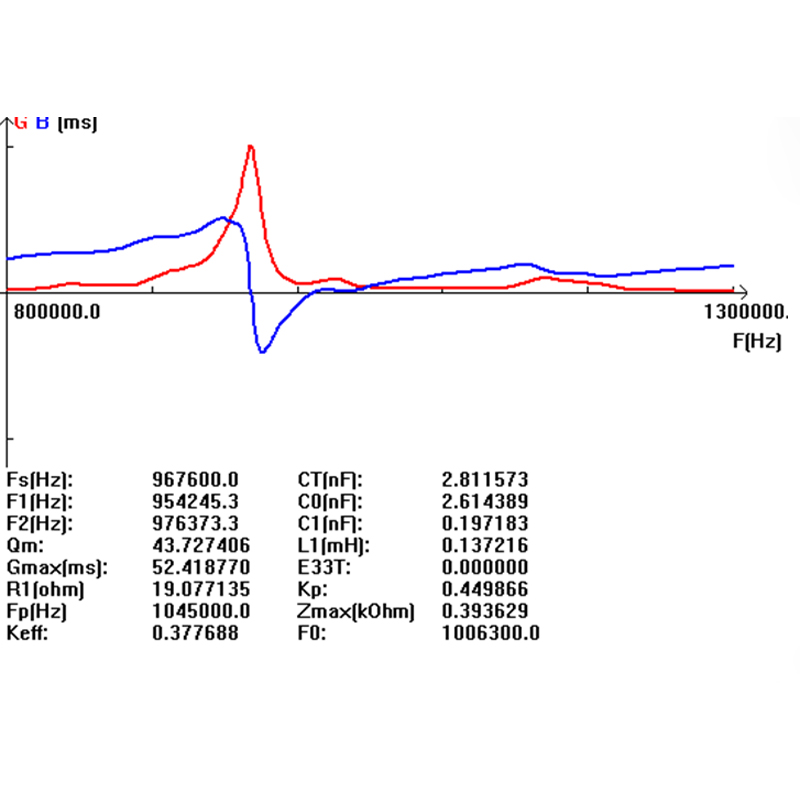

Center Frequency: 1M ± 5%
Mini. Resistance: 25Ω ± 20%
Capacitance: 2800pF ± 20% @1KHz
Sensitivity: Ehco signal 1.0V @0.3m, 24Vpp
Max. Input Voltage: ≤ 300Vpp
Working temperature: -40 ~ + 80℃
Pressure: ≤ 10Kg or 1MPa
Angle: (beam width) Half-power angle@-3dB: 3.2° ± 10%, Sharp Angle: 7.5° ± 10%
Detectable range: 0.05 ~ 3m
Protection Class: IP68
Housing Material: 304 stainless steel
Gross weight: 165g ± 5%
For more details, please contact us.
