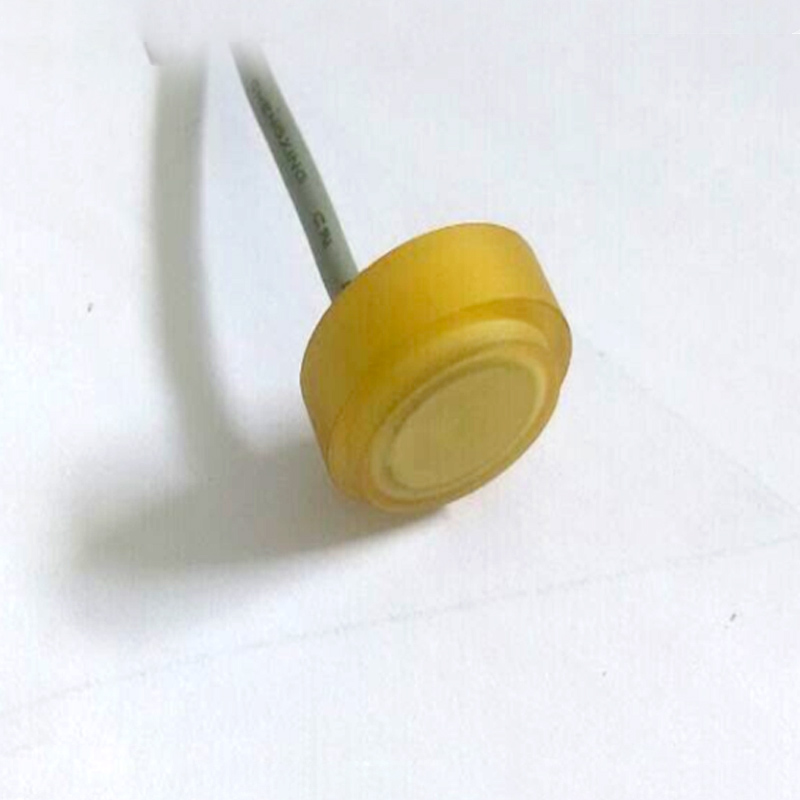

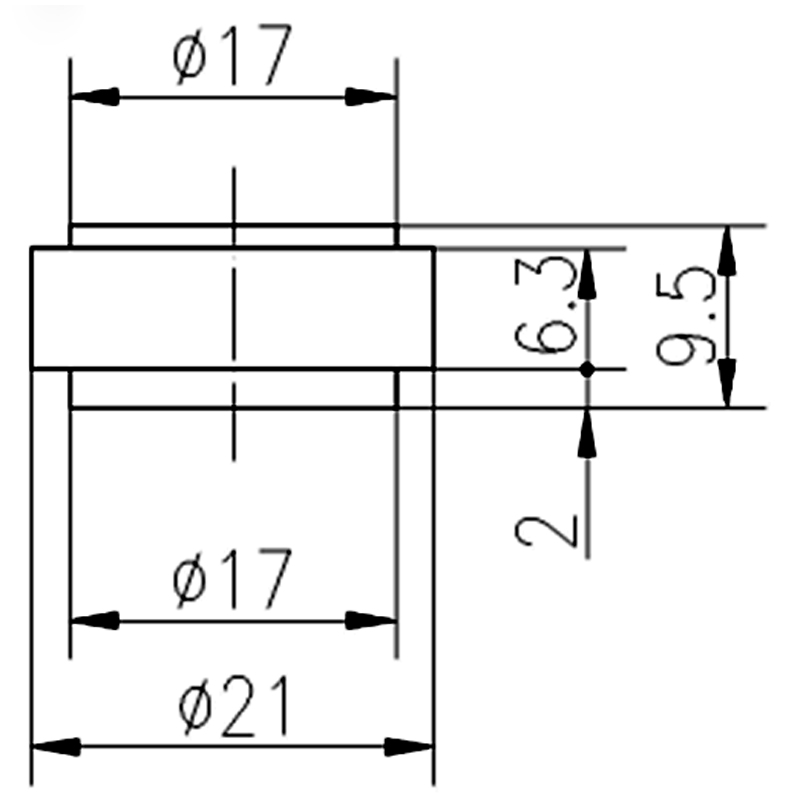

1MHz Φ17mm ultrasonic transducer for thermal flow meter
1MHz Φ17mm ultrasonic transducer for thermal flow meter 1MHz Φ17mm ultrasonic transducer for thermal flow meter 1MHz Φ17mm ultrasonic transducer for thermal flow meter

1MHz Φ17mm ultrasonic transducer for thermal flow meter

Product ID : LSPU171MFPIH09G
Product Attributes :

*Rugged sealed construction;

*Cylindrical design, easy for installation;

*Short-range measurement capabilities

Product Description

Applications:

Silt level measurement, under water range detection, level measurement etc



Technical parameter:

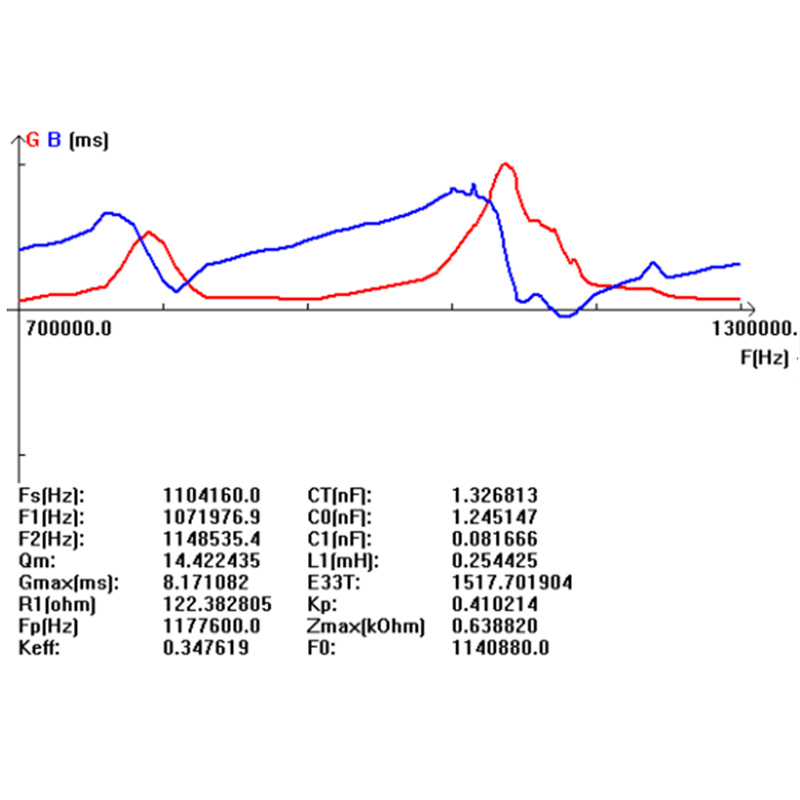

Center Frequency: 1MHz ± 5%

Detectable range: 0.05~3 m

Mini. parallel Resistance: 120 Ω ± 20%

Capacitance: 1200pF ± 20% @1KHz

Echo Sensitivity: 650mV echo amplitude @0.3m, under 24Vpp

Working Voltage: Crest voltage < 300Vpp

Working temperature: -40 ~ +80℃

Pressure: ≤10Kg or 1MPa

Angle: Half-power angle @-3dB: 5° ± 10%, Sharp Angle: 12° ± 10%

Housing Material: compound materials

Protection class: IP68

Gross weight: 5g ± 5%



For more details, please contact us.
