*Rugged sealed construction;
*Cylindrical design, easy for installation;
*Short-range measurement capabilities
Application:
Ultrasonic level gauge, Silt level measurement, under water range detection, level measurement etc
Technical parameter:
Construction: waterproof
Using Method: dual use

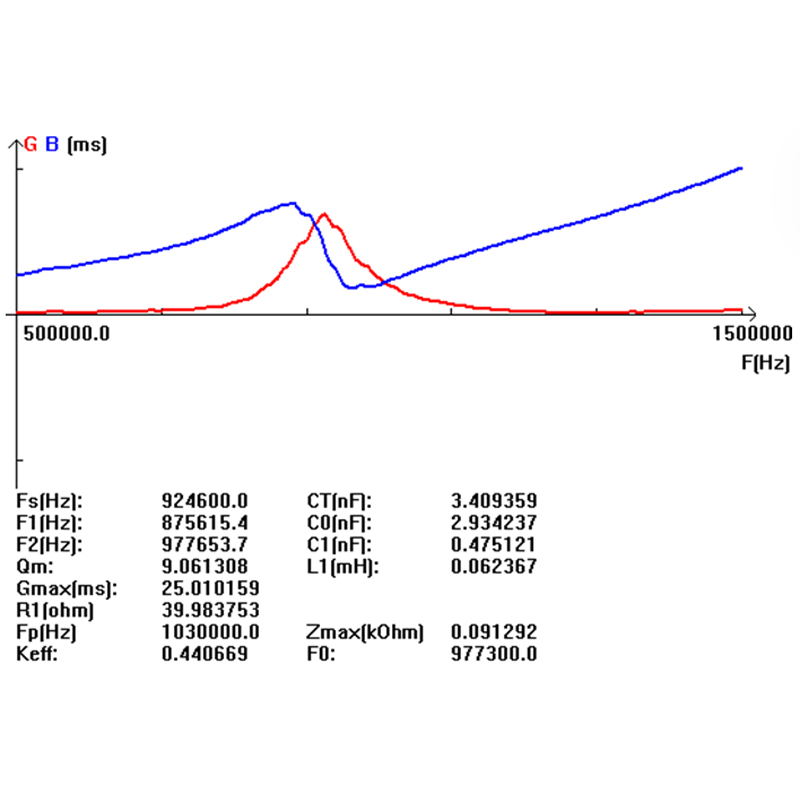

Center Frequency: 1MHz ± 5%
Mini. Resistance: 40 Ω ± 20%
Capacitance: 3400pF ± 20% @1KHz
Sensitivity: Ehco signal 750mV @0.45m, 24Vpp
Max. Input Voltage: ≤ 300Vpp
Working temperature: -40 ~ + 80℃
Pressure: ≤ 10Kg or 1MPa
Detectable range: 0.05 ~ 3m
Protection Class: IP68
Housing Material: composite
Gross weight: 600g ± 5%
For more details, please contact us.
