*Rugged sealed construction;
*Cylindrical design, easy for installation;
*Short-range measurement capabilities
Applications:
Silt level measurement, under water range detection, level measurement etc
Technical parameter:

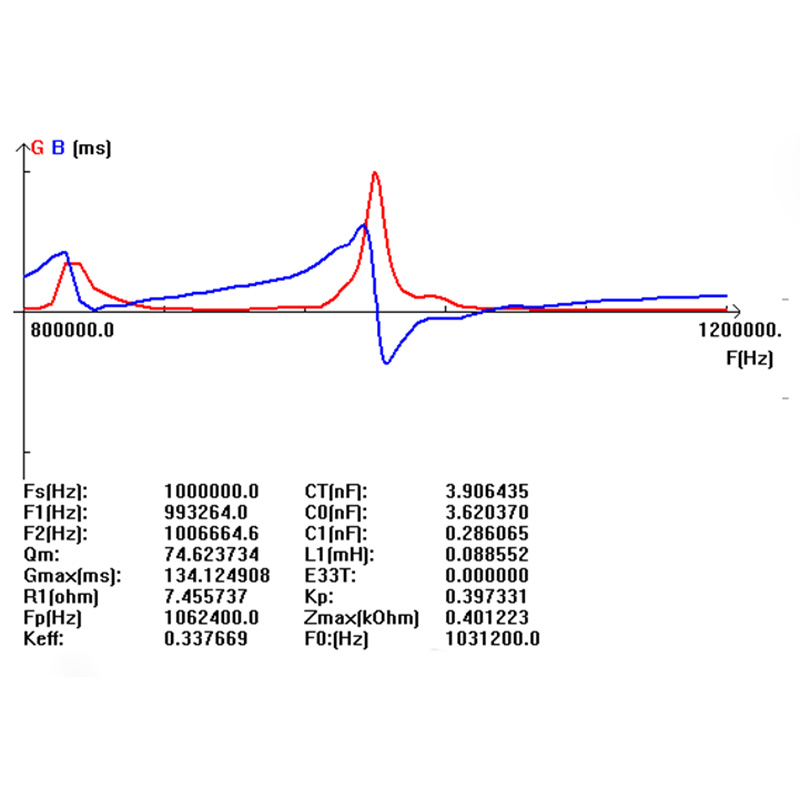

Center Frequency: 1MHz ± 5%
Detectable range: 0.05~3m
Mini. parallel Resistance: 15 Ω ± 20%
Capacitance: 4000pF ± 20% @1KHz
Echo Sensitivity: 2.5V echo amplitude @0.3m, under 24Vpp
Working Voltage: Crest voltage < 300Vpp
Working temperature: -40 ~ +80℃
Pressure: ≤10Kg or 1MPa
Angle: Half-power angle @-3dB: 2.4° ± 10%, Sharp Angle: 5.8° ± 10%
Housing Material: composite
Protection class: IP68
Gross weight: 100g ± 5%
For more details, please contact us.
