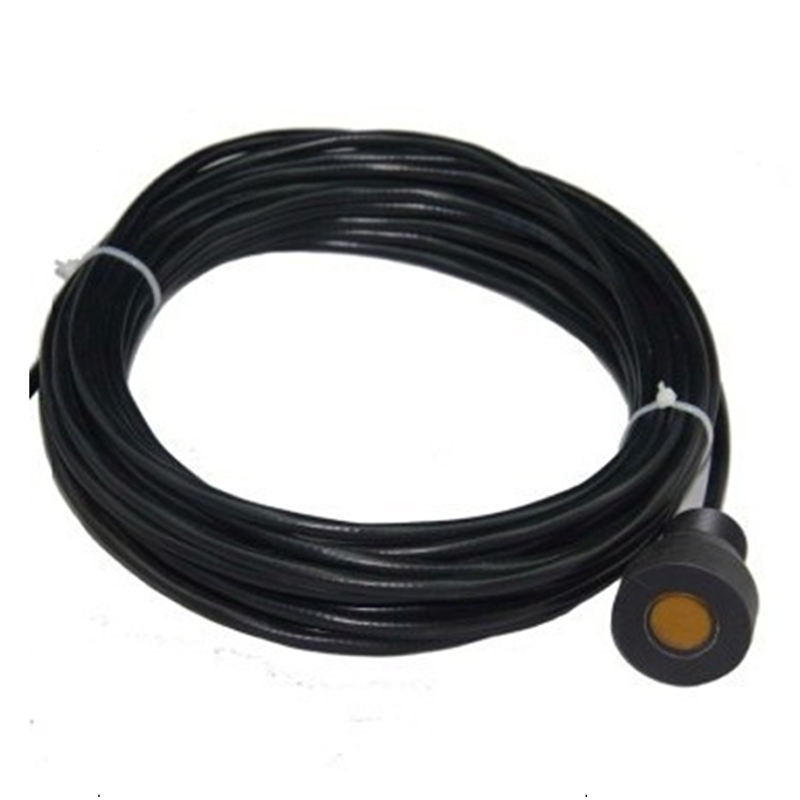

*Rugged sealed construction;
*Cylindrical design, easy for installation;
*Long-range measurement capabilities
Applications:
Silt level measurement, under water range detection, level measurement etc
Technical parameter:

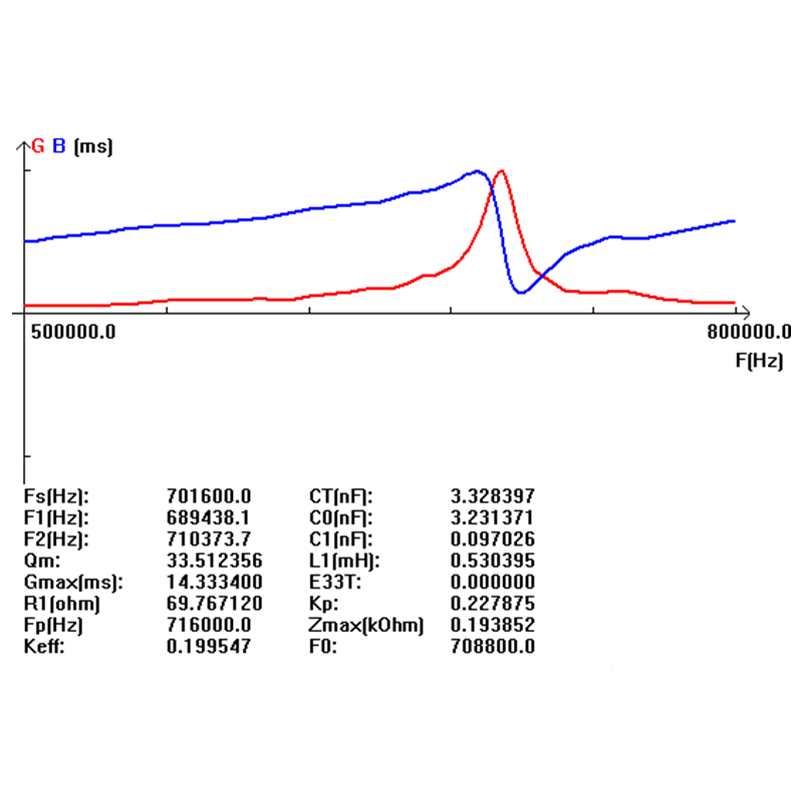

Center Frequency: 650KHz ± 5%
Detectable range: 0.3~25m
Mini. parallel Resistance: 80 Ω ± 20%
Capacitance: 3300pF ± 20% @1KHz
Echo Sensitivity: 500mV echo amplitude @0.3m, under 24Vpp
Crest voltage: less than 450Vpp
Working temperature: -40 ~ +80℃
Pressure: ≤10Kg or 1MPa
Angle: Half-power angle @-3dB: 6.8° ± 10%, Sharp Angle: 16.1° ± 10%
Housing Material: POM

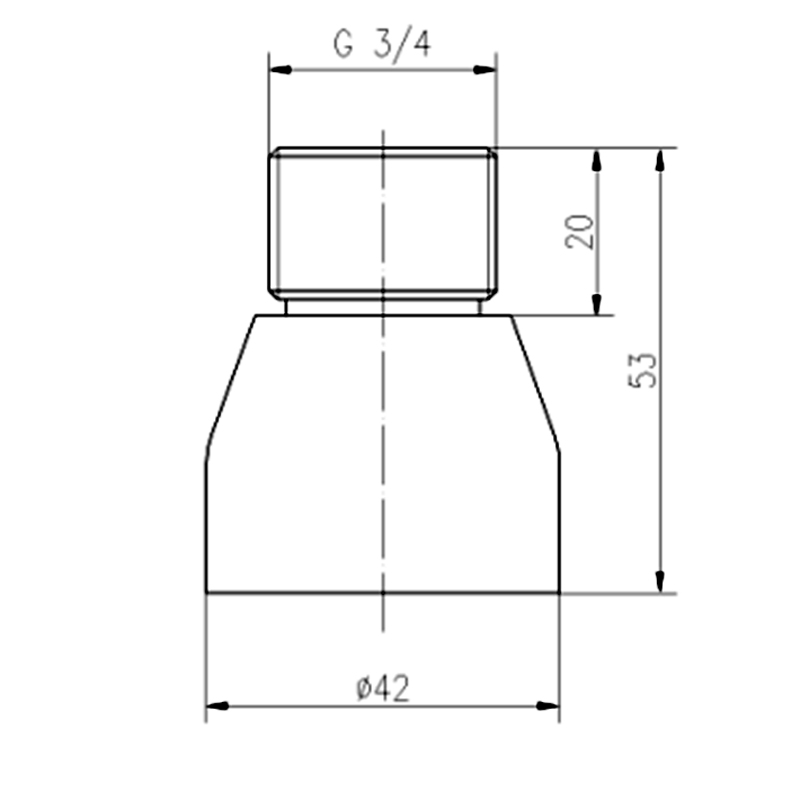

Installation dimensions: 28.6mm
Protection class: IP68
Gross weight: 445g ± 5%
For more details, please contact us.
