*Rugged sealed construction;
*Cylindrical design, easy for installation;
*Long-range measurement capabilities
Applications:
Silt level measurement, under water range detection, level measurement etc
Technical parameter:

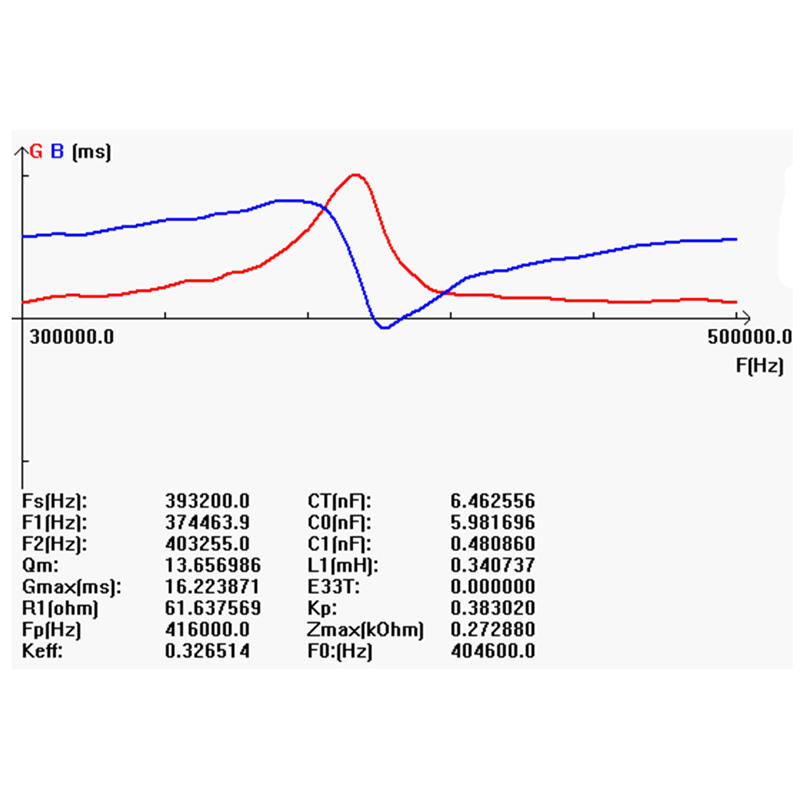

Center Frequency: 400KHz ± 5%
Mini. parallel Resistance: 60 Ω ± 20%
Capacitance: 6000pF ± 20% @1KHz
Echo Sensitivity: 150mV echo amplitude @0.3m, under 20Vpp
Crest voltage: less than 750Vpp
Working temperature: -40 ~ +80℃
Pressure: ≤10Kg or 1MPa
Housing Material: ABS
Protection class: IP68
Gross weight: 1200g ± 5%
For more details, please contact us.
