*Rugged sealed construction;
*Cylindrical design, easy for installation;
*Short-range measurement capabilities
Applications:
People Detection
Automated Store Displays
Booths & Kiosks
Lithium Battery Applications
Solar Powered Applications
Remote Monitoring Stations
Non-Contact Detection
Shipping systems
Mobile Robotics
Chemically Hazardous Locations
Tank Level Measurement
Freight Management Systems
Liquid Level Control
Tide/Water Level Monitoring
Dimensioning & Positioning
Long Range Object Detection
Proximity Detection
Security Systems
Technical parameter:
Construction: waterproof
Using Method: dual use
Center Frequency: 100 ± 8.0KHz
Sensitivity: -66 dB min.
Capacitance: 1100pF ± 20% at 1KHz

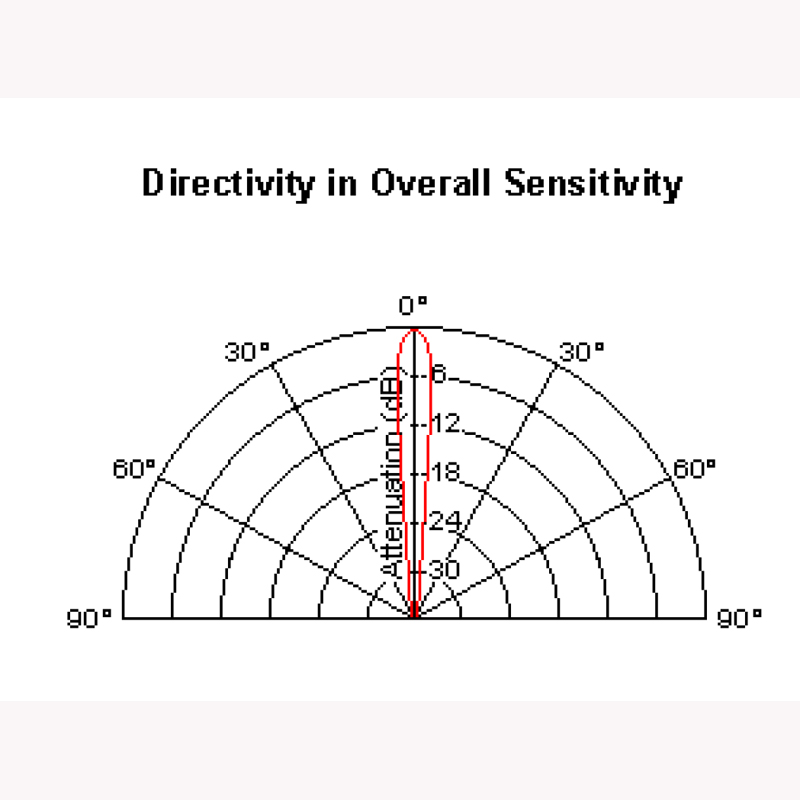

Directivity: 9 ± 2 degree
Max. input voltage: 600Vp-p
Detectable range: 0.2 ~4m
Protection class: IP65
Housing Material: aluminum
For more details, please contact us.
