*Rugged sealed construction;
*Cylindrical design, easy for installation;
*Long-range measurement capabilities
Applications:
underwater information transmission, underwater sound sourcing, under water range detection, level measurement etc
Technical parameter:

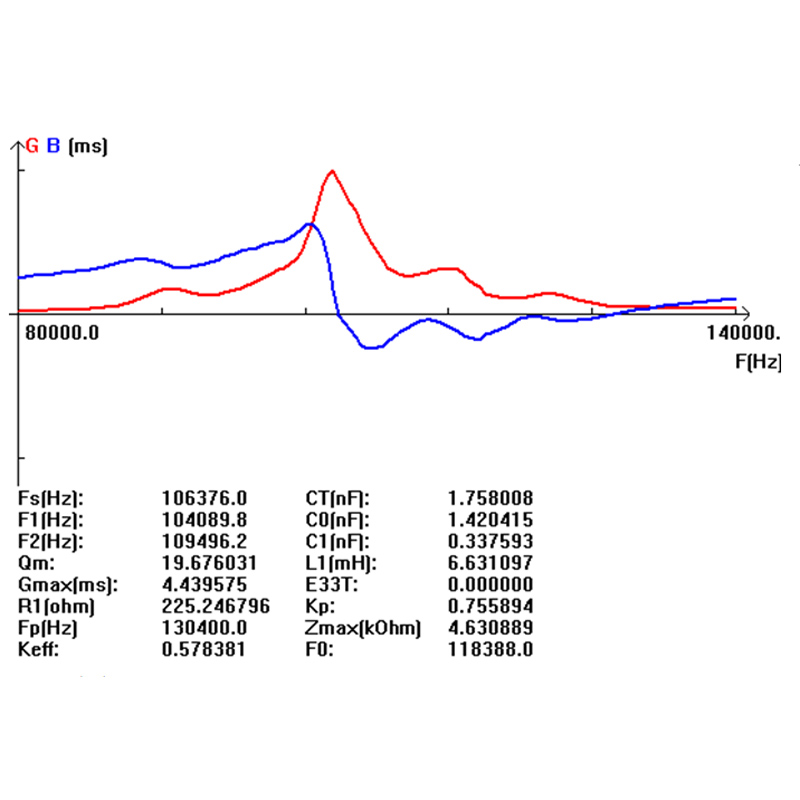

Center Frequency: 110KHz ± 5%
Detectable range: 0.6-40m
Mini. parallel Resistance: 220 Ω ± 20%
Capacitance: 1400pF ± 20% @1KHz
Echo Sensitivity: 3.0 V echo amplitude @0.65m, under 700Vpp
Crest voltage less than 750Vpp
Working temperature: -40 ~ +80℃
Pressure: ≤10Kg or 1MPa
Angle: (beam width) Half-power angle@-3dB: 38° ± 10%, Sharp Angle: 100° ± 10%
Angle: horizontal omnidirection
Housing Material: ABS
Protection class: IP68
Gross weight: 28g ± 5%
For more details, please contact us.
