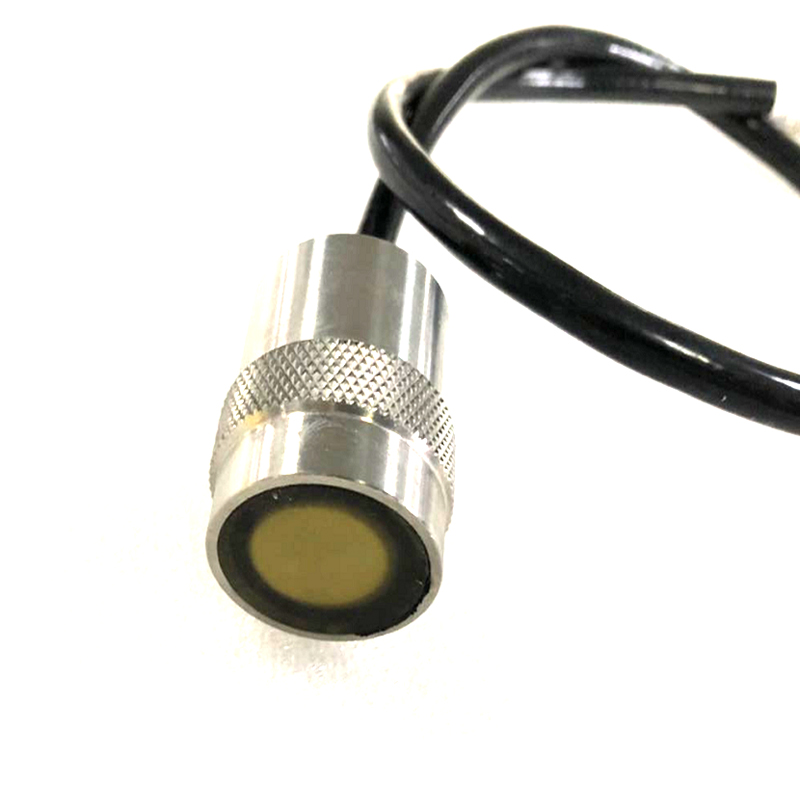

*Rugged sealed construction;

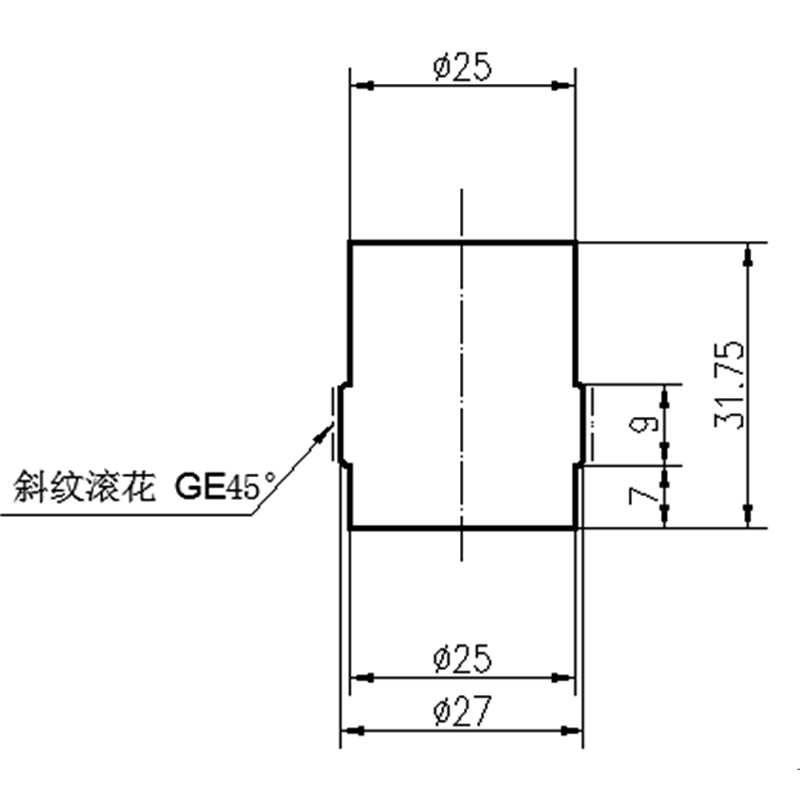

*Cylindrical design, easy for installation;
*Short-range measurement capabilities
Application:
ultrasonic gas flow meter, wind speed and direction, distance ranging etc
Technical parameter:
Construction: rugged sealed
Center Frequency: 1MKHz ± 5%
Mini. Resistance: 45Ω ± 20%
Capacitance: 1500pF ± 20% @1KHz
Sensitivity: Ehco signal 500mV(-62dB) @0.3m, 24Vpp
Max. Input Voltage: less than 300Vpp
Working temperature: -40~+80℃
Pressure: ≤10Kg or 1MPa
Angle: (beam width) Half-power angle@-3dB: 3.5°±10%, Sharp Angle: 8.2°±10%
Protection Class: IP68
Housing Material: titanium alloy
Gross weight: 50g ± 5%
Wiring instructions: ‘+’ red, ‘-’ white, black: shielded cable
For more details, please contact us.
