Home Products Piezoelectric Buzzer SMD Passive Buzzer 4000Hz Φ12*3mm SMD passive buzzer

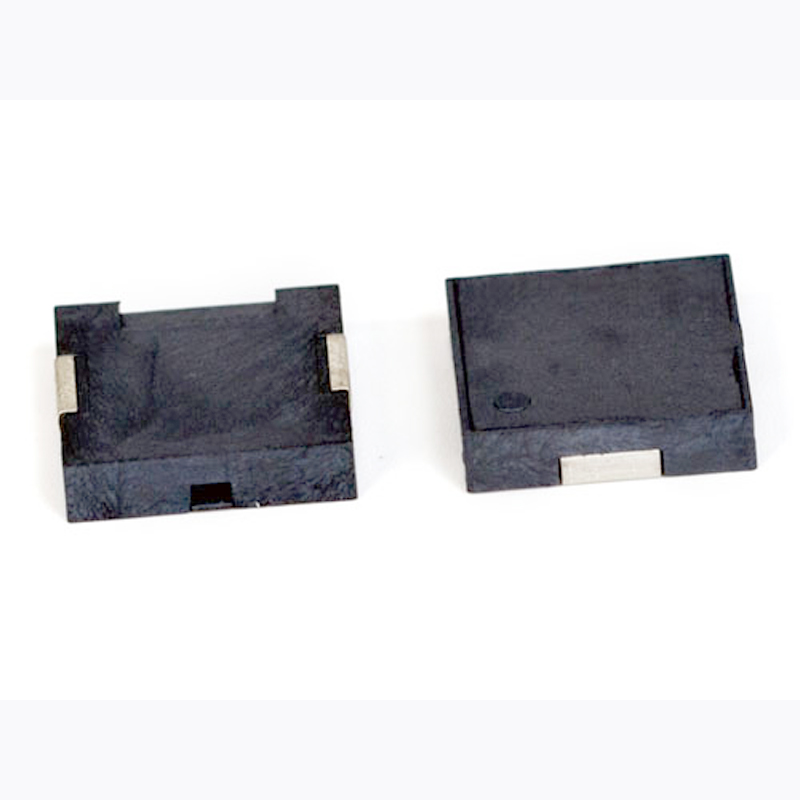

4000Hz Φ12*3mm SMD passive buzzer
4000Hz Φ12*3mm SMD passive buzzer 4000Hz Φ12*3mm SMD passive buzzer 4000Hz Φ12*3mm SMD passive buzzer

4000Hz Φ12*3mm SMD passive buzzer

Product ID : SMT1230F
Product Tags :
Product Description

Application:

Automotive alarms;

Toys, games machines etc;

Electrical appliances;

Automatic control devices;

Conveyors, medical equipment;

Fire alarms, burglar alarms, gas detectors;

Data processing equipment etc



Specifications:

Rated Voltage (Vp-p):               3

Max input Voltage (Vp-p) :       25

Rated Current (mA) :                5 max.

Capacitance @100Hz:              16000±30%

Sound Output @10cm(dB):     75 min.

Resonant Frequency (KHz):       4.0

Operating Temperature (℃):    -20~ +70

Storage Temperature(℃):         -30~+80



For more details, please contact us.
