*Rugged sealed construction;
*Cylindrical design, easy for installation;
*Short-range measurement capabilities
Applications:
People Detection
Automated Store Displays
Booths & Kiosks
Lithium Battery Applications
Solar Powered Applications
Remote Monitoring Stations
Non-Contact Detection
Shipping systems
Mobile Robotics
Chemically Hazardous Locations
Tank Level Measurement
Freight Management Systems
Liquid Level Control
Tide/Water Level Monitoring
Dimensioning & Positioning
Long Range Object Detection
Proximity Detection
Security Systems
Technical parameter:
Using Method: Dual use
Frequency: 100 ± 8KHz
Sensitivity: >= -1.5V(driver signal: 200Vp-p, 100KHz, at 70cm)
Capacitance: 900pF ± 25% at 1KHz

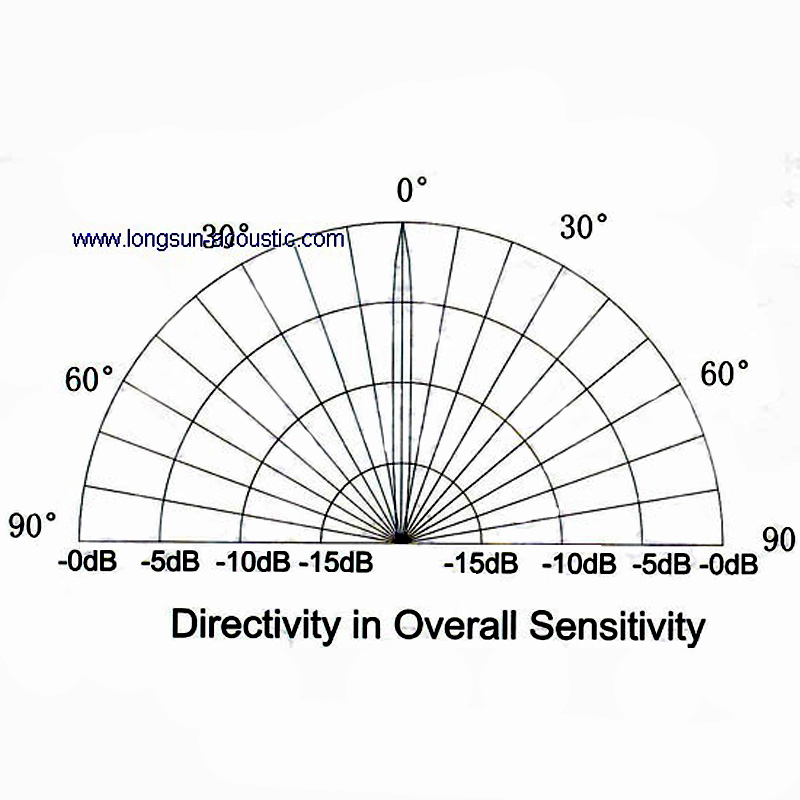

Directivity: 9 ± 2 degree
Allowable input Voltage: 160 Vp-p
Detectable distance: 0.2 ~ 4m
Protection class: IP65
Housing Material: Aluminum
For more details, please contact us.
