*Rugged sealed construction;
*Cylindrical design, easy for installation;
*Long-range measurement capabilities
Application:
Ultrasonic level gauge, monitoring, anti-collision, security
Technical parameter:
Construction: waterproof
Using Method: dual use

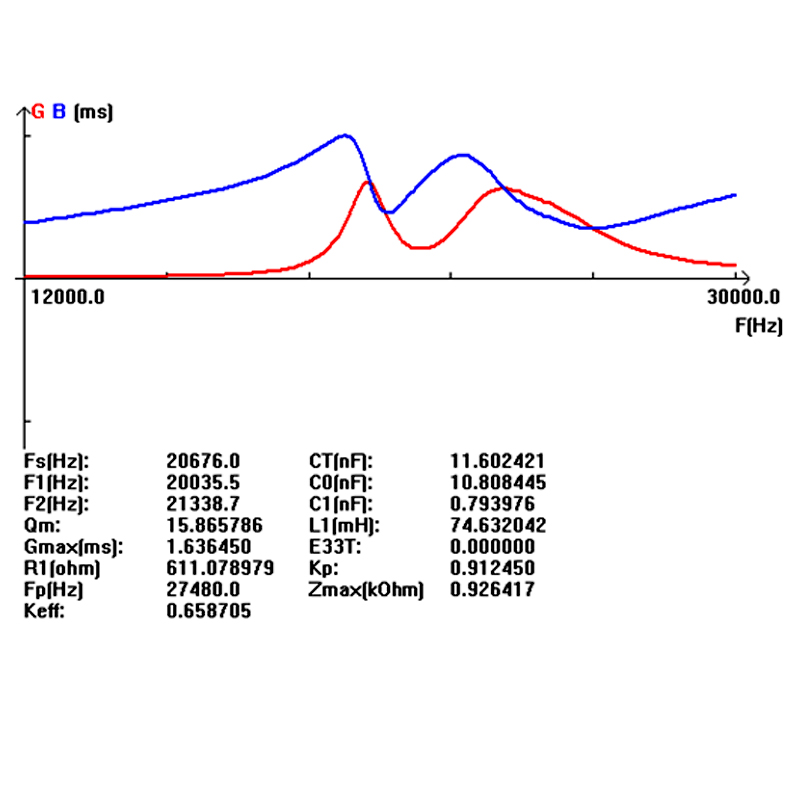

Center Frequency: 21KHz ± 5%
Mini. Resistance: 530Ω ± 20%
Capacitance: 11000pF ± 20% @1KHz
Sensitivity: Ehco signal 400mV @0.6m, 520Vpp
Max. Input Voltage: less than 1500Vpp
Working temperature: -40 ~ + 80℃
Pressure: ≤ 3Kg or 0.3 MPa
Angle: (beam width) Half-power angle@-3dB: 13° ± 10%, Sharp Angle: 31° ± 10%
Detectable range: 1.0 ~ 30 m
Protection Class: IP68
Housing Material: ABS
Gross weight: 1300g ± 5%
For more details, please contact us.
