*Rugged sealed construction;
*Cylindrical design, easy for installation;
*Short-range measurement capabilities
Application:
location, wind speed and direction, distance ranging etc
Technical parameter:
Construction: rugged sealed

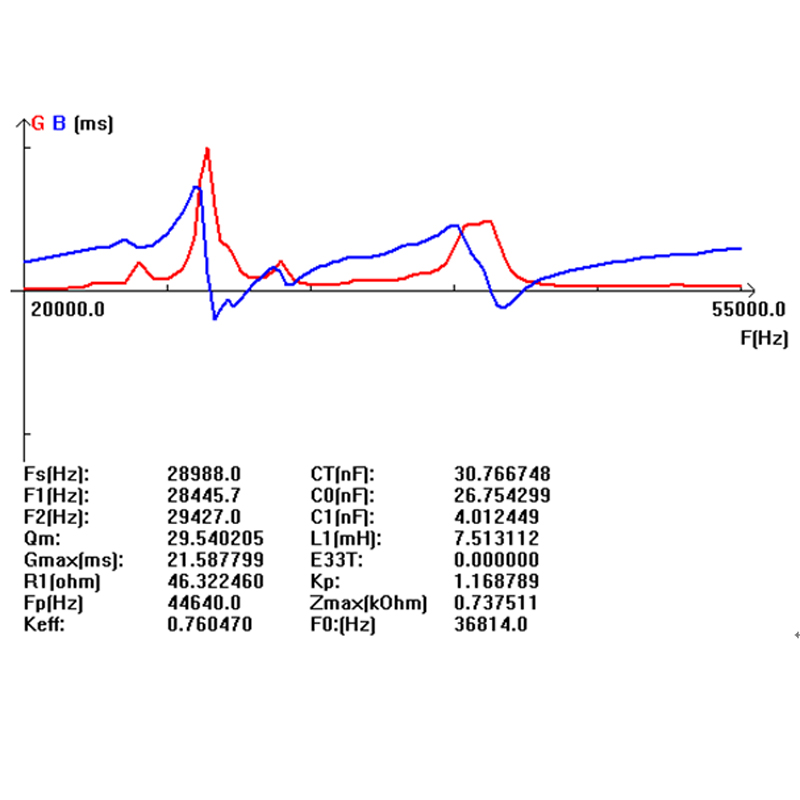

Center Frequency: 35KHz ± 5%
Mini. Resistance: 31Ω ± 20%
Capacitance: 40000pF ± 20% @1KHz
Max. Input Voltage: less than 900Vpp
Working temperature: -40~+80℃
Pressure: ≤10Kg or 1MPa
Protection Class: IP68
Housing Material: ABS, stainless steel
For more details, please contact us.
