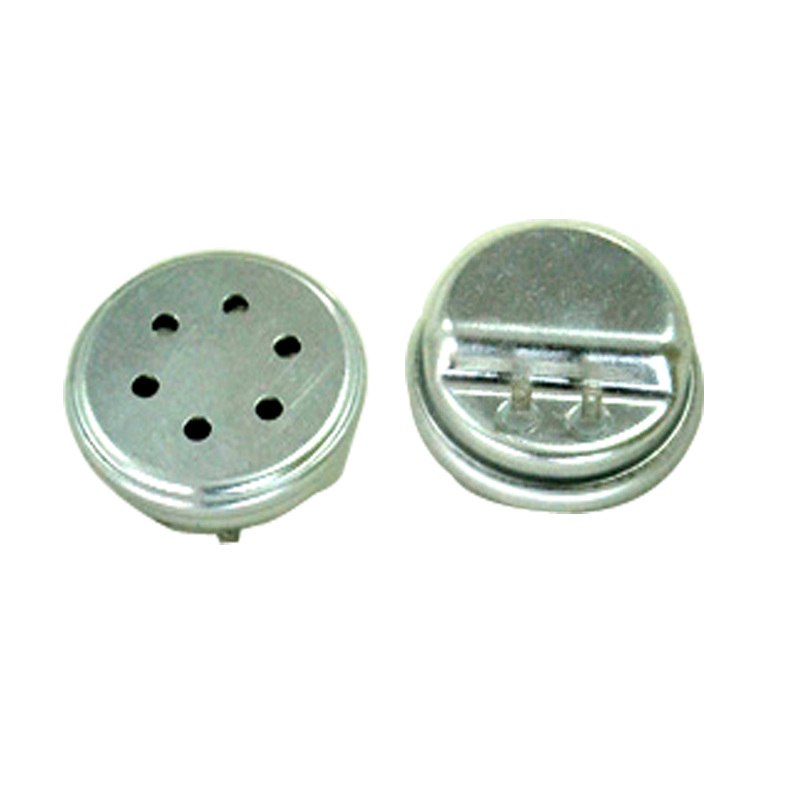

Φ39mm Rocking armature transducer as receiver and microphone
Φ39mm Rocking armature transducer as receiver and microphone Φ39mm Rocking armature transducer as receiver and microphone

Φ39mm Rocking armature transducer as receiver and microphone

Product ID : MR38H14.2-100
Product Tags :
Product Attributes :

*Efficient & sensitive;

*Highly reliable and rugged;

*Lightweight construction.

Product Description

Sensitivity @1KHz:         >=96 ± 3dB (0dB=20μPa)

AC impedance @1KHz:   100 ± 20% ohms

T.H.D (1KHz at 0.6V):    <5%

Frequency range:           300-3400Hz

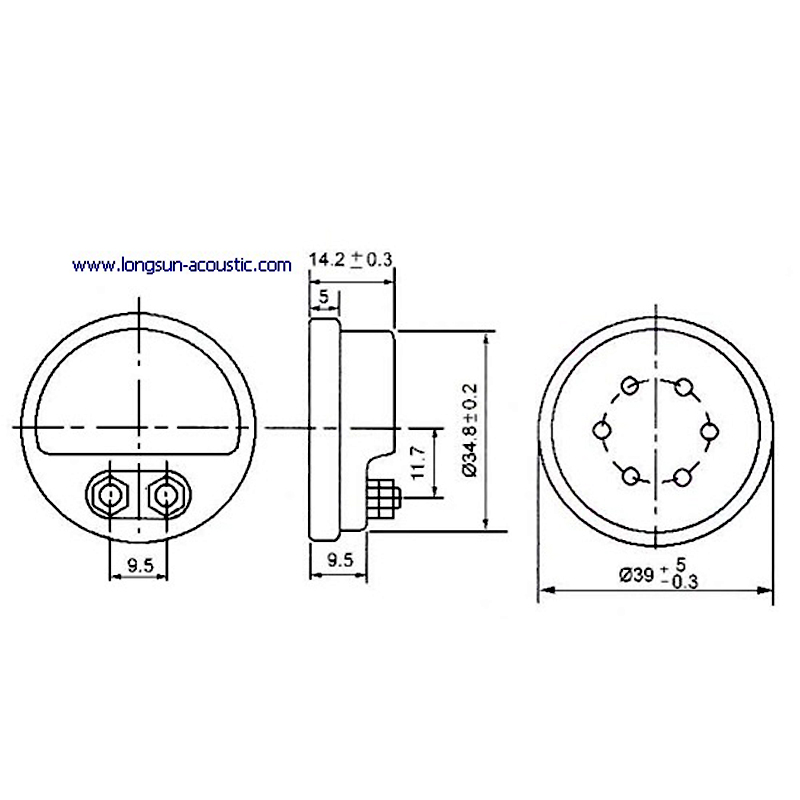

Dimension:                   39*14.2mm

Operating temperature:  -5 0 ℃ ~ +60 ℃



For more details, please contact us.
