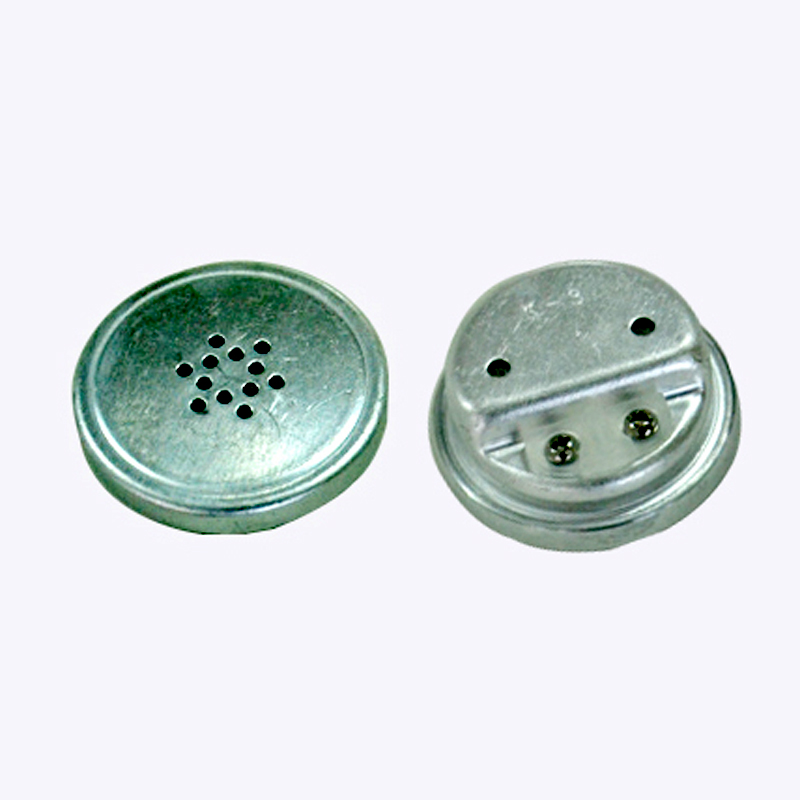

 Φ46mm Rocking armature transducer with pressure equalizing hole
 Φ46mm Rocking armature transducer with pressure equalizing hole  Φ46mm Rocking armature transducer with pressure equalizing hole

Φ46mm Rocking armature transducer with pressure equalizing hole

Product ID : MR46.5H19.5-300
Product Tags :
Product Attributes :

*Efficient & sensitive;

*Highly reliable and rugged;

*Lightweight construction.

Product Description

Sensitivity @1KHz:         >=115 ± 3dB (0dB=20μPa)

AC impedance @1KHz:   300 ± 20% ohms

T.H.D (1KHz at 0.6V):    <5%

Frequency range:           300-3400Hz

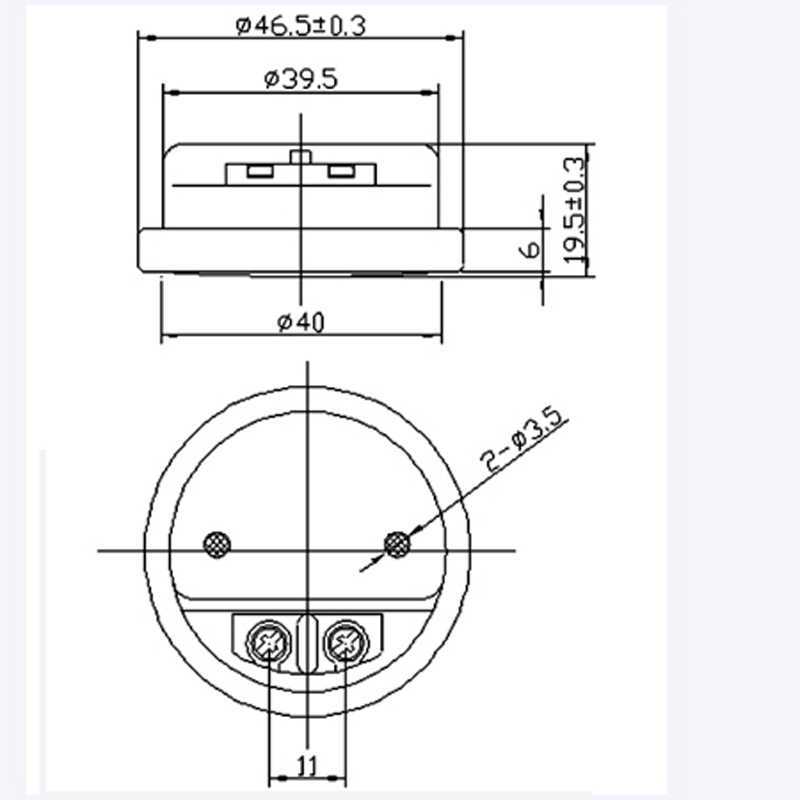

Dimension:                   46.5*19.5mm

Operating temperature:  -5 0 ℃ ~ +60 ℃



For more details, please contact us.
