*Rugged sealed construction;

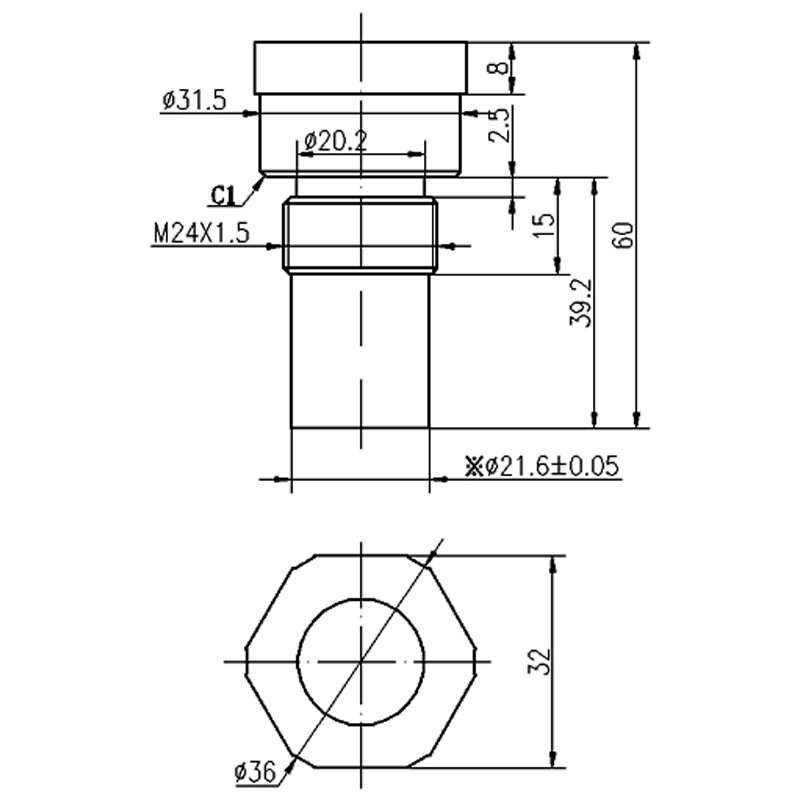

*Cylindrical design, easy for installation;
*Short-range measurement capabilities
Application:
distance ranging etc
Technical parameter:

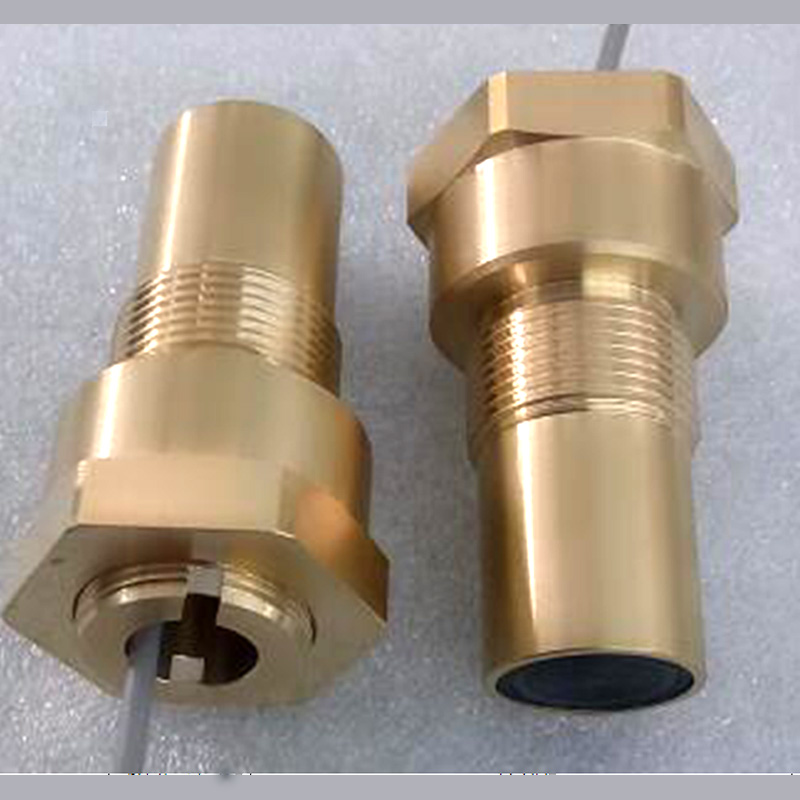

Construction: rugged sealed

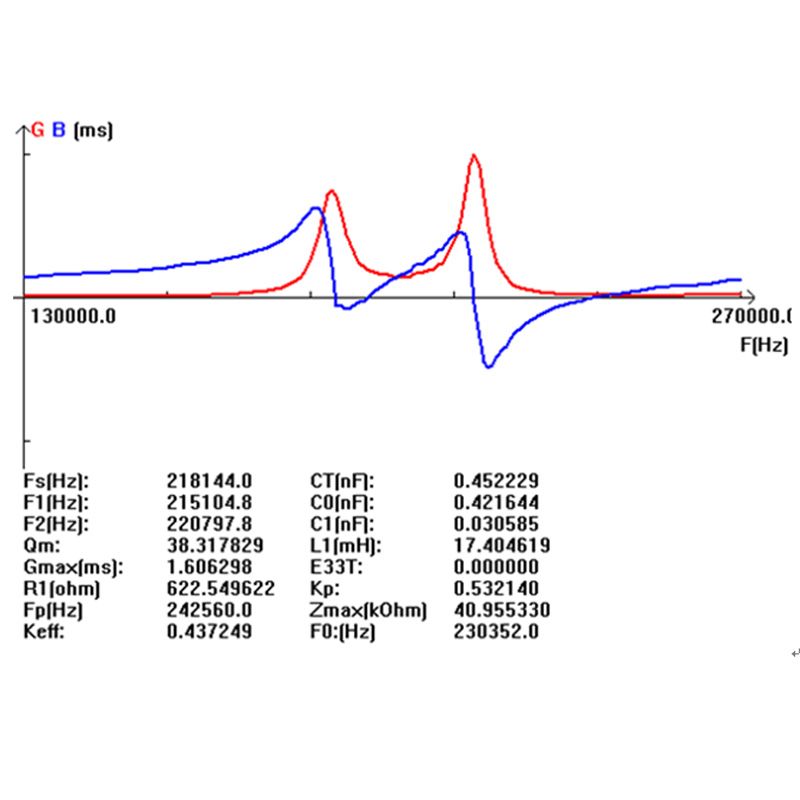

Center Frequency: 200KHz ± 5%
Mini. Resistance: 700Ω ± 20%
Capacitance: 420pF ± 20% @1KHz
Sensitivity: Ehco signal 10mV(-62dB) @0.3m, 200Vpp
Max. Input Voltage: less than 750Vpp
Working temperature: -40~+80℃
Pressure: ≤10Kg or 1MPa
Angle: (beam width) Half-power angle@-3dB: 5.3°±10%, Sharp Angle: 12.5°±10%
Detectable range: 0.1 ~ 1.5m
Protection Class: IP68
Housing Material: H62
Gross weight: 180g ± 5%
Wiring instructions: ‘+’ red, ‘-’ white, black: shielded cable
For more details, please contact us.
