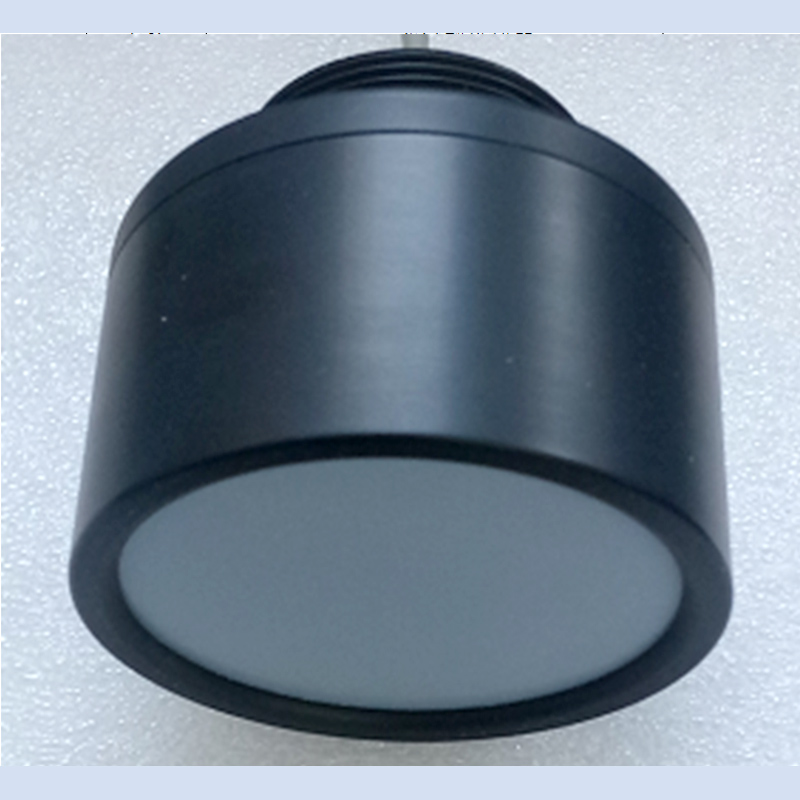

*Rugged sealed construction;

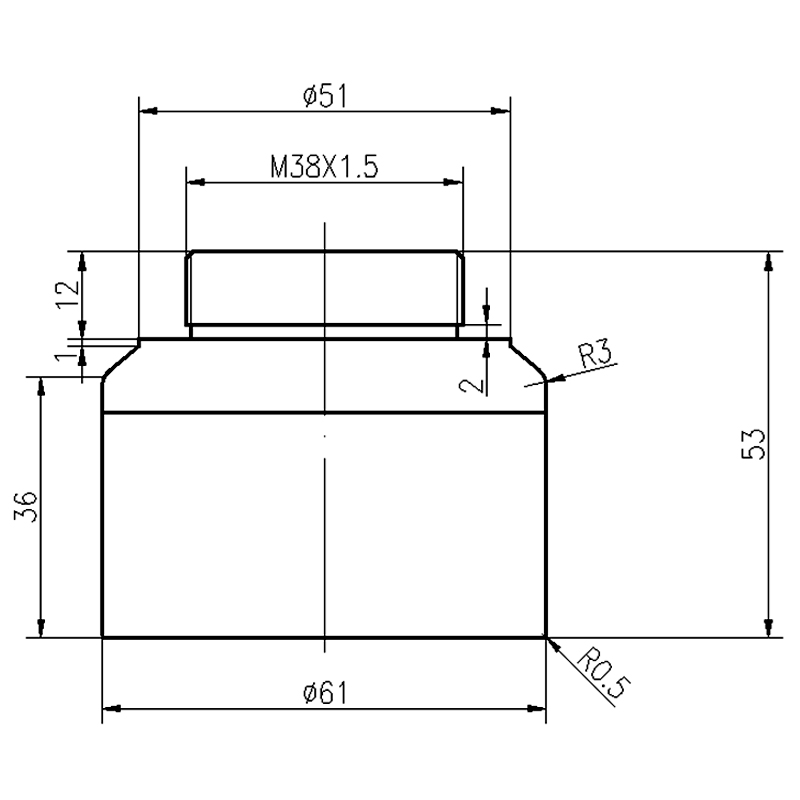

*Cylindrical design, easy for installation;
*Short-range measurement capabilities
Application:
distance ranging etc
Technical parameter:
Construction: rugged sealed

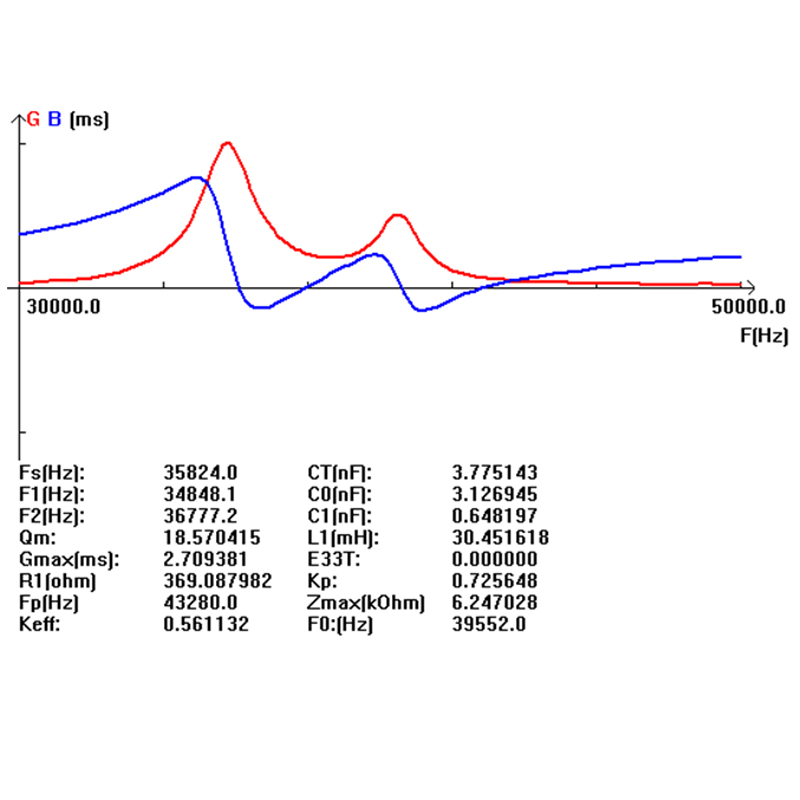

Center Frequency: 40KHz ± 5%
Mini. Resistance: 370Ω ± 20%
Capacitance: 3700pF ± 20% @1KHz
Sensitivity: Ehco signal 350mV(-62dB) @0.6m, 500Vpp
Max. Input Voltage: less than 1500Vpp
Working temperature: -40~+80℃
Pressure: ≤10Kg or 1MPa
Angle: (beam width) Half-power angle@-3dB: 8.9°±10%, Sharp Angle: 21°±10%
Detectable range: 0.5 ~ 12m
Protection Class: IP68
Housing Material: ABS
Gross weight: 265g ± 5%
Wiring instructions: ‘+’ red, ‘-’ white, black: shielded cable
