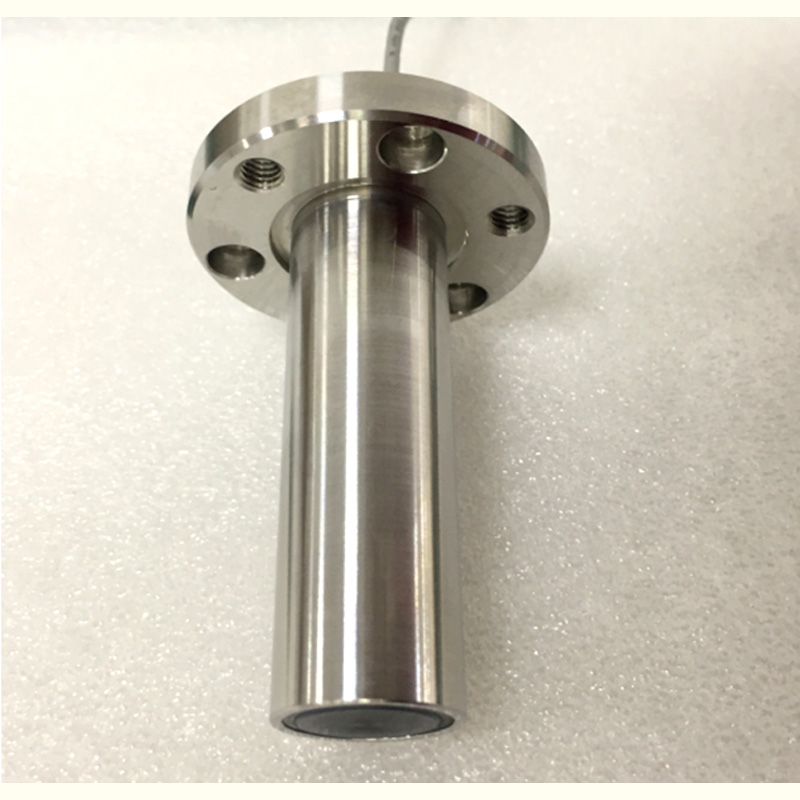

*Rugged sealed construction;

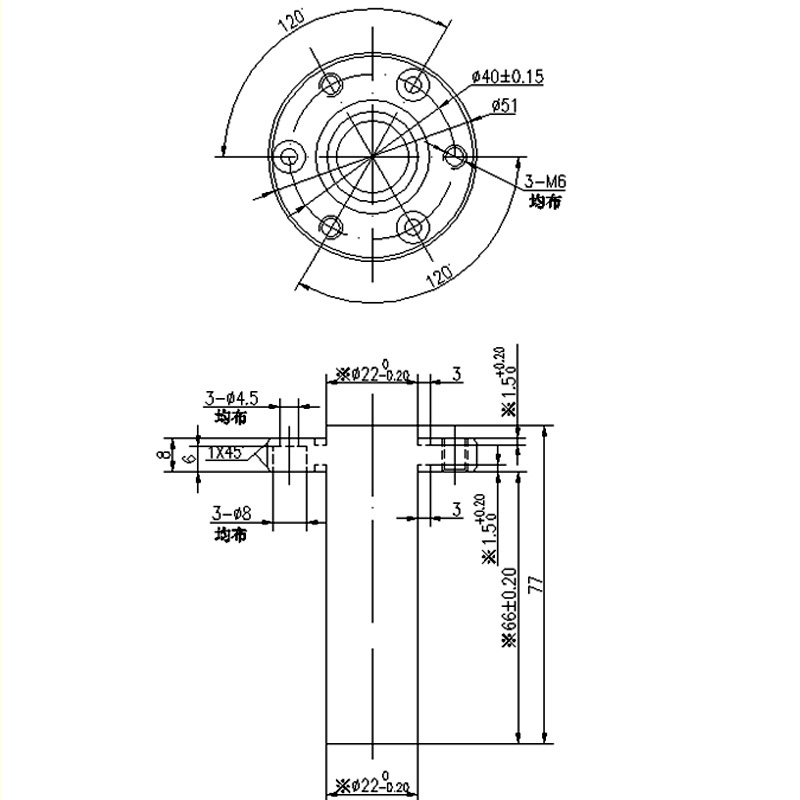

*Cylindrical design, easy for installation;
*Short-range measurement capabilities
Application:
ultrasonic gas flow meter, distance ranging etc
Technical parameter:
Construction: rugged sealed

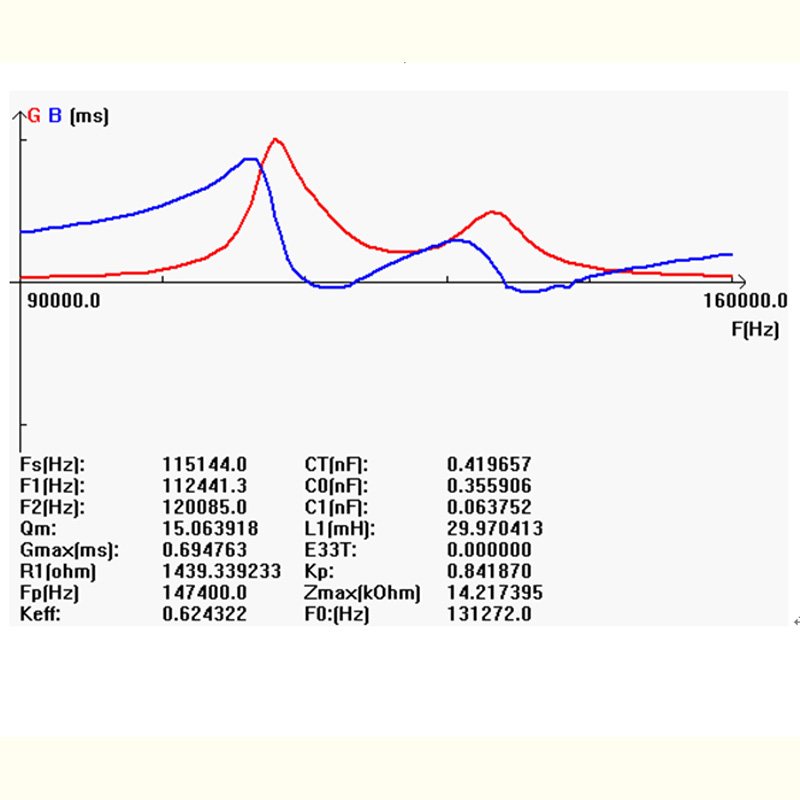

Center Frequency: 125KHz ± 5%
Mini. Resistance: 1500Ω ± 20%
Capacitance: 400pF ± 20% @1KHz
Sensitivity: Ehco signal 10mV(-62dB) @0.3m, 300Vpp
Max. Input Voltage: less than 750Vpp
Working temperature: -40~+80℃
Pressure: ≤10Kg or 1MPa
Angle: (beam width) Half-power angle@-3dB: 10.1°±10%, Sharp Angle: 23.9°±10%
Detectable range: 0.12 ~ 2m
Protection Class: IP68
Housing Material: 304
Gross weight: 190g ± 5%
Wiring instructions: ‘+’ red, ‘-’ white, black: shielded cable
