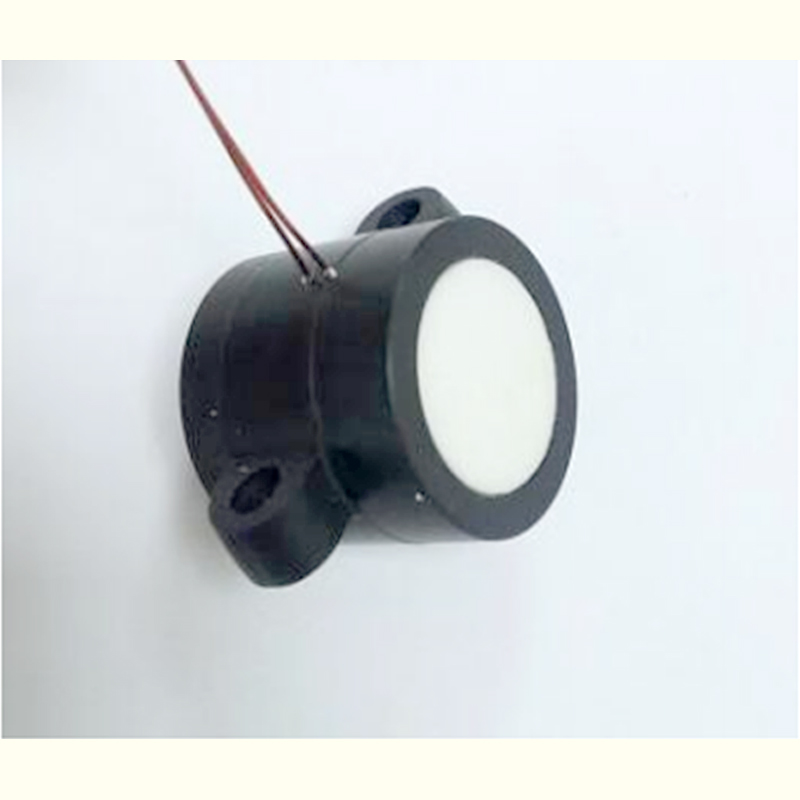

*Rugged sealed construction;
*Cylindrical design, easy for installation;
*Short-range measurement capabilities
Application:
distance ranging etc
Technical parameter:
Construction: rugged sealed

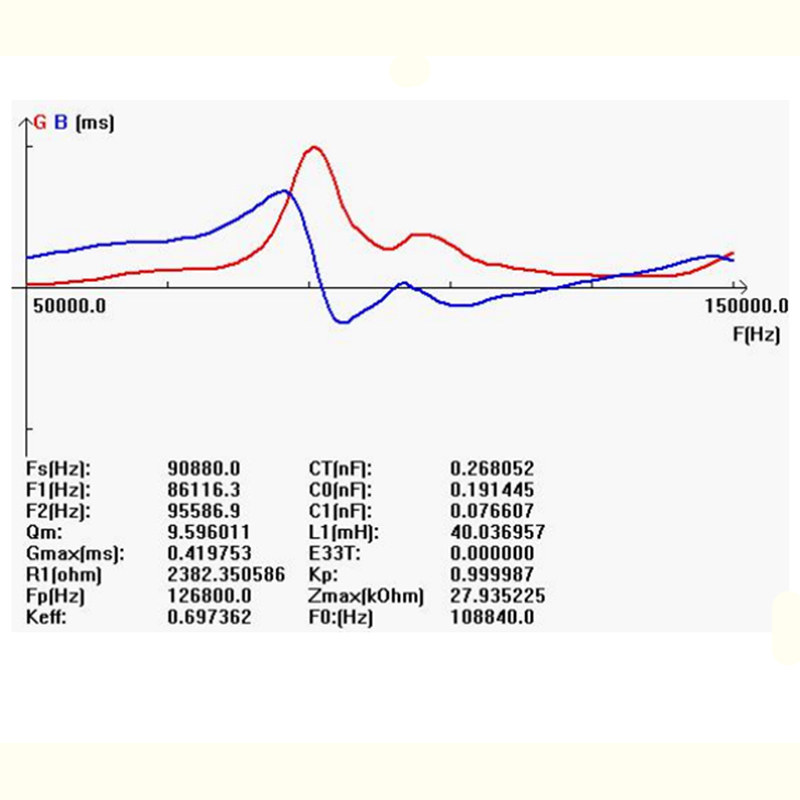

Center Frequency: 100KHz ± 5%
Mini. Resistance: 300Ω ± 20%
Capacitance: 2400pF ± 20% @1KHz
Sensitivity: Ehco signal 30mV(-62dB) @0.3m, 300Vpp
Max. Input Voltage: less than 750Vpp
Working temperature: -40~+80℃
Pressure: ≤10Kg or 1MPa
Angle: (beam width) Half-power angle@-3dB: 6.3°±10%, Sharp Angle: 14.9°±10%
Detectable range: 0.12 ~ 2m
Protection Class: IP68
Housing Material: ABS
Gross weight: 22g ± 5%

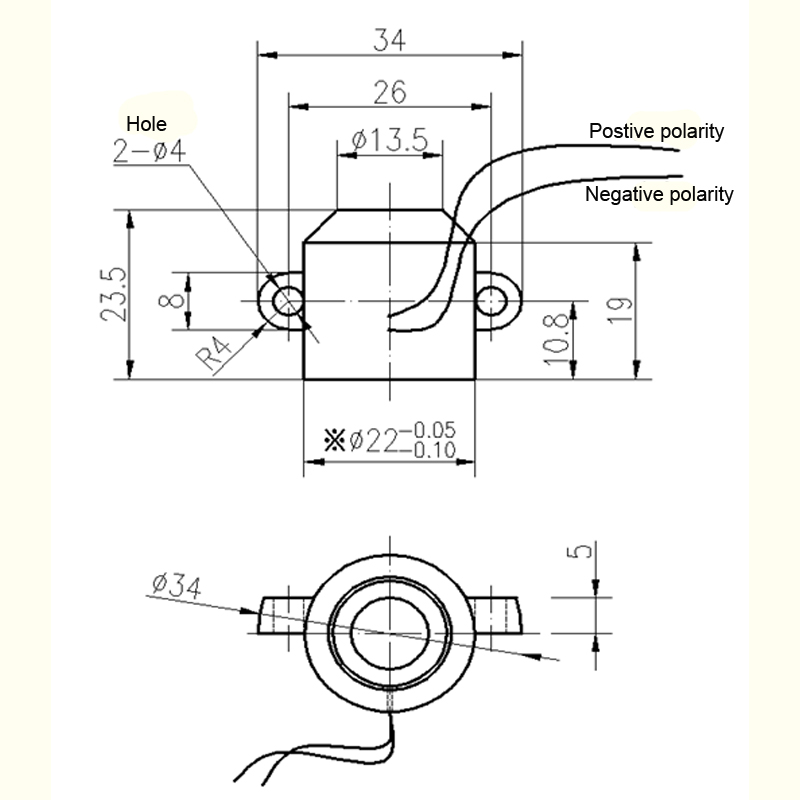

Wiring instructions: as per instruction
For more details, please contact us.
